Low-E Glass Manufacturer Energy-Saving Coated Glass for Modern Architecture
Engineered with multi-layer metallic coatings that reflect infrared heat while maximizing daylight, our Low-E glass reduces energy consumption by up to 40% and keeps interiors comfortable year-round — delivered from a 120-acre factory with 20+ years of coating expertise.
Low-E Glass That Improves Comfort & Cuts Energy Loss
Low emissivity (Low-E) glass features multi-layer metallic coatings deposited on the glass surface. These coatings selectively filter solar energy — allowing visible light through while reflecting infrared heat — reducing HVAC costs and improving occupant comfort in commercial and residential buildings.
Low-E Glass vs. Standard Clear Glass & Tinted Glass
| Performance Metric | Low-E Glass (IGU) | Clear Float Glass | Tinted Glass |
|---|---|---|---|
| U-Value (W/m²·K) | 1.4 – 1.8 | 5.6 – 5.8 | 5.0 – 5.4 |
| SHGC (Solar Heat Gain) | 0.25 – 0.45 | 0.82 – 0.86 | 0.50 – 0.65 |
| Visible Light Transmittance | 40% – 70%+ | 85% – 90% | 30% – 55% |
| UV Rejection | Up to 95% | 25% – 30% | 40% – 55% |
| Energy Savings | 30% – 40% | Baseline | 10% – 15% |
| Condensation Control | Excellent | Poor | Poor |
| Facade Aesthetic Flexibility | Neutral / Multi-Color | Clear Only | Limited Palette |
Ready to see how Low-E glass performs in your specific project scenario?
Get a Free Performance AnalysisHow Low-E Glass Controls Your Building's Energy
The invisible multi-layer coating acts as a selective filter — welcoming natural daylight while bouncing infrared heat back to its source, creating a more comfortable and energy-efficient interior.
The Low-E coating is engineered to allow 40%–70%+ of visible light to enter, ensuring interiors remain bright and naturally lit throughout the day — reducing reliance on artificial lighting.
Silver-based metallic layers reflect up to 95% of far-infrared radiation. In summer, outdoor heat stays outside; in winter, indoor warmth bounces back in — maintaining stable temperatures without overworking HVAC systems.
The combined effect of solar control and thermal insulation means fewer hot spots near windows, less condensation in cold climates, and HVAC energy consumption reduced by up to 40% compared to standard glazing.
with Triple Silver IGU
Solar Heat Blocked
Transmittance
Far-Infrared Blocked
Want to understand which Low-E type matches your project's climate and energy goals?
Explore Low-E TypesCommon Low-E Glass Sourcing Challenges — And How We Solve Them
Choosing the wrong Low-E configuration can lead to energy code failures, glare complaints, or costly rework. Here's what experienced project managers watch for.
Selecting a Low-E product with U-value or SHGC above code thresholds can delay permits and force expensive glass replacement after installation — especially on projects targeting LEED or green building standards.
Low-quality Low-E coatings or improperly configured IGUs allow cold spots near glazing, interior surface condensation, and occupant complaints — particularly in heating-dominant climates with large curtain walls.
High-reflectance Low-E types can cause disruptive glare to adjacent buildings and drivers, triggering community complaints or even legal disputes on urban projects.
Confusing single, double, and triple silver options — or mixing soft-coat and hard-coat where inappropriate — leads to performance shortfalls, batch recalls, and project delays that far exceed the cost of glass itself.
Low-E glass requires careful handling — coating scratches and IGU seal failures during transit can cause entire shipments to be rejected on-site, putting tight construction schedules at risk.
When coating defects or dimensional errors are discovered on-site, slow supplier response turns a fixable issue into a project-wide crisis. Buyers often switch suppliers entirely over communication failures.
Let our engineering team assess risks in your upcoming Low-E glass project before you commit.
Request Risk AssessmentThree Low-E Strategies Tailored to Your Building's Priority
Every project has a different balance between daylight, solar control, and insulation. Choose the strategy that fits your climate zone and design intent — our engineers will configure the optimal glass package.
Maximizes visible light transmittance (up to 70%+) while providing excellent thermal insulation. Ideal where heating costs dominate and natural daylight is a design priority.
- VLT: 65% – 72%
- U-Value: 1.6 – 1.8 W/m²·K (IGU)
- Best for offices, schools, healthcare
Combines the daylight-maximizing single silver coating with a laminated inner lite for overhead glazing, balustrades, or areas requiring safety glass compliance.
- Meets safety glazing codes
- Enhanced sound insulation
- UV blocking 99%+ with PVB interlayer
Triple-pane IGU with two Low-E coated surfaces delivers the lowest possible U-value while retaining strong daylight. Designed for projects pursuing Passive House or ultra-low-energy standards.
- U-Value: as low as 0.6 W/m²·K
- Condensation virtually eliminated
- Significant heating cost reduction
Two layers of silver film dramatically lower the Shading Coefficient while maintaining reasonable daylight. Filters solar heat into true "cold light" — reducing summer cooling costs significantly.
- SHGC: 0.25 – 0.35
- VLT: 45% – 60%
- Ideal for commercial towers, hotels
Three metallic silver layers deliver the industry's lowest SHGC while preserving visual clarity. The ultimate solar barrier for curtain walls and skylights in high-radiation environments.
- SHGC: as low as 0.20
- Significant HVAC equipment downsizing
- Neutral exterior appearance
Combines reflective surface treatment with Low-E coating for buildings wanting bold mirror-like exteriors. Available in golden, silver, blue, and green reflective tones.
- Daytime privacy from exterior
- Multiple decorative color options
- Combined solar + aesthetic function
Carefully balanced double silver formulation that achieves both moderate SHGC and high visible light transmittance — the go-to for projects needing year-round performance without extreme trade-offs.
- SHGC: 0.30 – 0.40 / VLT: 55% – 65%
- U-Value: 1.5 – 1.7 W/m²·K (IGU)
- Residential, commercial, institutional
Upgrading the aluminum spacer to warm-edge (stainless steel or composite) reduces thermal bridging at the glass edge, lowering overall U-value by 0.1–0.3 and virtually eliminating edge condensation.
- Edge temperature improved 3–5°C
- Better long-term seal durability
- Compatible with argon gas fill
We supply the entire facade glazing package — Low-E vision glass, spandrel panels, and entrance/canopy glass — all from one production line, ensuring color consistency and simplified logistics.
- Unified color matching across all panels
- Single-source QC and traceability
- Coordinated delivery scheduling
Not sure which strategy fits your project? Share your drawings and climate data — we'll recommend.
Request RecommendationThree Numbers That Define Your Building's Energy Envelope
Every Low-E glass specification starts with three critical metrics. Understanding these values helps you select the right coating type and IGU structure for your climate zone and energy code requirements.
Measures the rate of heat transfer through the glass assembly. A lower U-value means less heat escapes in winter and less heat enters in summer — directly reducing your heating and cooling costs and keeping indoor temperatures consistent near window zones.
The Solar Heat Gain Coefficient indicates how much solar radiation passes through. Triple silver coatings can push SHGC as low as 0.20, blocking up to 80% of solar heat — making them essential for west-facing facades and tropical climates where air conditioning dominates energy costs.
Visible Light Transmittance determines how bright the interior feels. Single silver coatings offer VLT up to 72% — ideal for offices and schools where natural daylight reduces lighting costs and improves occupant comfort and productivity year-round.
Need a performance simulation for your specific project location and orientation?
Request Performance AnalysisChoose the Right Low-E Coating for Your Project
From single silver for maximum daylight to triple silver for ultimate solar control — each type is engineered for different climates and building priorities. Select a type to explore its performance profile.
Single Silver Low-E Glass
The first-generation Low-E coating contains one metallic silver layer supplemented by several corrosion- and heat-resistant films. With its low emissivity characteristic, single silver excels at thermal insulation while allowing the highest visible light transmittance among all Low-E types — making it the preferred choice when maximizing natural daylight is the primary design goal.
- Highest VLT among Low-E types (up to 72%) for bright, naturally lit interiors
- Excellent thermal insulation with U-values as low as 1.75 W/m²·K in IGU
- Available in neutral, blue, grey, champagne gold — full color range
Double Silver Low-E Glass
The second-generation coating features two layers of pure metallic silver within a complex 13+ layer film structure. This engineering breakthrough skillfully combines high visible light transmittance with low solar transmittance — filtering sunlight into true "cold light" that illuminates without heating. The lower Shading Coefficient and heat transfer coefficient make it ideal for cooling-dominant climates.
- Dramatically lower SHGC (as low as 0.20) versus single silver
- Maintains good VLT (up to 69%) despite aggressive solar blocking
- Enables significant HVAC equipment downsizing on new construction
Triple Silver Low-E Glass
The pinnacle of Low-E technology — three layers of metallic silver deliver the absolute maximum solar heat filtering capability available today. With neutral color appearance and breakthrough energy efficiency, triple silver enables architects to design floor-to-ceiling glass facades in the hottest climates while still meeting the most demanding green building standards including LEED Platinum and Passive House.
- Industry's lowest SHGC — blocks up to 80%+ of solar heat energy
- Neutral exterior color extends architects' creative possibilities
- Significant reduction in HVAC equipment investment on new builds
Not sure which coating type matches your energy code and climate? Let our engineers decide.
Get Expert RecommendationIGU Structure & Available Configurations
Low-E coatings achieve their full potential when assembled into properly configured insulated glass units. Every component — from spacer material to gas fill — impacts your final U-value and long-term seal integrity.
The most common configuration for commercial curtain walls and residential windows, delivering a strong balance of thermal insulation and cost-effectiveness.
Adds safety compliance and enhanced sound insulation. Required for overhead glazing, balustrades, and areas where code mandates safety glass on the inner lite.
Ultra-low U-value (down to 0.6 W/m²·K) for Passive House and extreme cold climates. Two Low-E surfaces with dual cavities virtually eliminate edge condensation.
Have your own project drawing? Send it over and we'll configure the optimal IGU structure for you.
Send Your DrawingExplore Low-E Glass Colors & Surface Finishes
From near-invisible neutral tones to bold reflective facades, our Low-E product range covers the full aesthetic spectrum. Each color also delivers a specific balance of transparency, reflectance, and solar control.
Need physical color samples to match your facade design? We'll ship them within 5 business days.
Request Free Color SamplesComplete Low-E Insulated Glass Performance Specifications
Verified laboratory data for every Low-E product in our range. Use the filters to narrow by coating type — then download the complete performance sheet for your engineering team's specification review.
| Code No. | Color | Type | VLT (%) | Reflect. Out (%) | Reflect. In (%) | U-Value (W/m²·K) | SC | SHGC |
|---|---|---|---|---|---|---|---|---|
| 6SX1180TN+12A+6C | Neutral | Single | 72 | 10 | 11 | 1.85 | 0.67 | 0.58 |
| 6SX1170TB+12A+6C | Blue | Single | 64 | 11 | 11 | 1.84 | 0.56 | 0.49 |
| 6SX1160TS+12A+6C | Silver Grey | Single | 53 | 22 | 10 | 1.81 | 0.47 | 0.41 |
| 6SX1155TG+12A+6C | Grey | Single | 49 | 18 | 9 | 1.89 | 0.46 | 0.40 |
| 6SX1150TB+12A+6C | Blue Grey | Single | 44 | 18 | 9 | 1.84 | 0.42 | 0.36 |
| 6ST11B43+12A+6C | Champagne Gold | Single | 38 | 17 | 22 | 1.78 | 0.36 | 0.31 |
| 6ST11A30+12A+6C | Grey | Single | 26 | 5 | 23 | 1.75 | 0.28 | 0.24 |
| 6ST12A75+12A+6C | Neutral | Double | 69 | 11 | 13 | 1.57 | 0.48 | 0.42 |
| 6ST11D-T60+12A+6C | Blue Silver | Double | 53 | 26 | 20 | 1.65 | 0.42 | 0.37 |
| 6ST12A66+12A+6C | Misty Gray | Double | 60 | 10 | 11 | 1.62 | 0.41 | 0.36 |
| 6ST11E0253+12A+6C | Silver | Double | 47 | 29 | 18 | 1.64 | 0.38 | 0.33 |
| 6ST12B61+12A+6C | Blue | Double | 54 | 19 | 19 | 1.64 | 0.34 | 0.30 |
| 6ST12B43+12A+6JH | Blue Grey | Double | 28 | 14 | 18 | 1.57 | 0.31 | 0.27 |
| 6SX3240TB+12A+6C | Grey | Double | 30 | 14 | 19 | 1.68 | 0.27 | 0.24 |
| 6SX4240TB+12A+6C | Grey | Double | 21 | 9 | 19 | 1.68 | 0.23 | 0.20 |
Testing Conditions: All data calculated by WINDOW 5.2 software under ASHRAE standard conditions, for reference only. Solar spectrum range: 300nm–2500nm; visible light spectrum range: 380nm–780nm. Winter U-value: outdoor -18°C, indoor 21°C, wind 5.5 m/s, no sunlight. Summer U-value: outdoor 32°C, indoor 24°C, wind 2.8 m/s, solar density 783 W/m². Data tolerance ±3%; U-value tolerance ±0.2 W/m²·K. Structure: 6mm Low-E + 12mm Air + 6mm Clear unless otherwise noted.
Need the complete performance data sheet for your specification documents?
Download Full Performance SheetFind the Right Low-E Configuration for Every Building Type
Different building types demand different combinations of solar control, daylight, and thermal insulation. Each scenario below includes our recommended Low-E type and IGU structure based on real project experience.
Large-area curtain walls require aggressive solar heat rejection without sacrificing the open, transparent aesthetic architects demand. Double or triple silver Low-E in IGU delivers the lowest SHGC and U-value while maintaining a neutral exterior appearance.
Window and door glazing needs a careful balance between daylight, insulation, and edge-to-edge clarity. Single silver Low-E provides the highest VLT for naturally bright interiors while still cutting heating costs significantly in cold climates.
Guest rooms with floor-to-ceiling glass need zero hot spots, minimal glare, and quiet interiors. Double silver Low-E combined with laminated inner glass achieves superior solar control with enhanced sound insulation for a premium guest experience.
Modern offices prioritize worker comfort and energy efficiency to meet green building certification. Double silver with high VLT preserves natural daylight for productivity while keeping SHGC low enough to downsize HVAC equipment and qualify for LEED credits.
Homeowners want warm, bright rooms without cold drafts near windows or high energy bills. Single silver Low-E with argon-filled IGU and warm-edge spacers offers the most cost-effective upgrade — eliminating condensation and reducing heating costs by up to 35%.
Overhead glazing receives the most intense solar radiation and must comply with safety glass codes. Triple silver Low-E in IGU with laminated inner glass provides maximum heat rejection while meeting overhead safety requirements and minimizing glare for occupants below.
Have a different building type? Send us your project brief and we'll recommend the ideal Low-E configuration.
Get Custom Recommendation120-Acre Factory With 20+ Years of Glass Processing Expertise
From automated cutting to precision IGU assembly, every process is controlled under one roof. Our vertically integrated production ensures consistent quality, shorter lead times, and complete traceability from raw glass to finished unit.
Factory Campus
Factory Buildings
Production Capacity
Glass Capability
Breakage Rate
Fill Rate

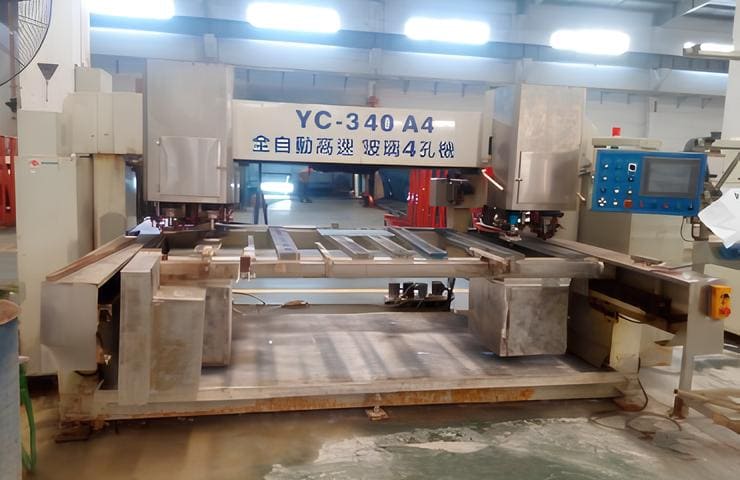

Advanced Equipment for Low-E Glass Processing
Cutting Tables
Grinding Machines
Tempering Furnace
Production Lines
IGU Lines
Production Lines

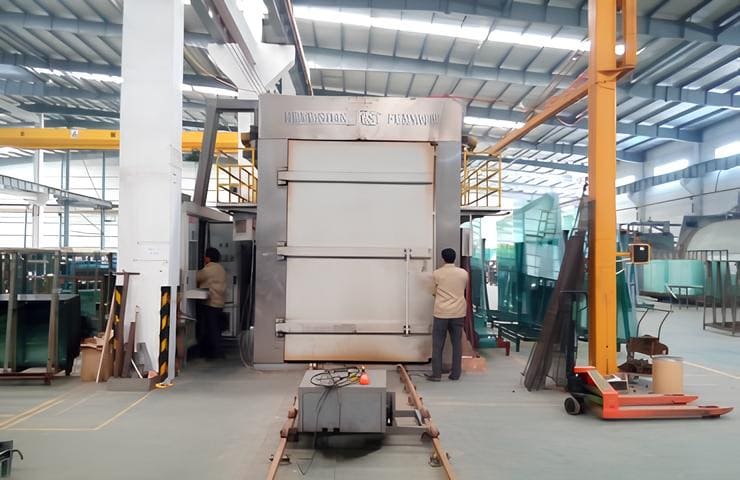

Testing Oven
Laboratory
See our production capabilities in action — schedule a virtual or on-site factory tour.
Schedule Factory VisitRigorous Quality Control From Raw Material to Finished Unit
Every Low-E insulated glass unit passes through a multi-stage quality control pipeline. Our ISO 9001-certified system combines automated inspection with manual expert review at each critical production node.
Need a project-specific QC plan or third-party inspection coordination? We provide both.
Request QC ReportCommon Low-E IGU Defects — And How We Prevent Them
Transparency builds trust. Here are the most common issues that can occur with Low-E insulated glass — along with the specific controls we apply at every stage to ensure they never reach your job site.
Want a detailed risk assessment for your specific Low-E glass project?
Request Defect Prevention ReportFrom Drawing to Delivery — 5 Steps to Your Low-E Glass
Our structured project delivery process keeps every stakeholder aligned from day one. Each stage includes clear deliverables, approval checkpoints, and process badges showing which capabilities are engaged.
Submit your architectural drawings, glass schedule, or bill of quantities. Our engineering team reviews all specifications and confirms feasibility within 24 hours.
Based on your climate zone, energy code, and design intent, we recommend the optimal Low-E type and IGU structure. Performance data sheet and pricing confirmed before proceeding.
Physical color samples and/or mock-up panels are produced and shipped for your on-site evaluation. Production begins only after your written sample approval is received.
Full-scale production with real-time QC at every node. Progress photos and inspection reports shared at key milestones. Third-party inspection can be coordinated on request.
Reinforced plywood crating with corner protectors, foam dividers, and moisture-proof wrapping. Container loading supervised and documented. Full shipping documents provided.
What You Receive at Each Stage
Ready to start your Low-E glass project? Submit your drawing and get a quote within 24 hours.
Submit Project DrawingBacked by International Standards — Trusted Worldwide
Every Low-E glass product we deliver comes with complete certification documentation. Our quality management system and product testing meet the strictest international and regional standards required for commercial building projects.
Complete Documentation & Service Capabilities
Every unit carries a unique label linking back to raw material lot, production date, operator ID, and QC sign-off. Instant retrieval on request for any order, even years after delivery.
Complete documentation bundle including mill certificates, test reports, coating performance data, IGU seal test results, and SGCC/IGCC/CE certificates — ready for building authority submission.
Independent laboratory testing available for U-value, SHGC, VLT, air leakage, and condensation resistance. Reports from internationally accredited labs accepted by building authorities worldwide.
Reinforced plywood crating with corner protectors, foam dividers, and moisture-proof PE wrapping. Fumigation certificate and ISPM-15 compliant timber. Container loading supervised and photo-documented.
Standard 10-year IGU seal warranty covering fogging, moisture ingress, and argon loss. Dedicated after-sales team responds within 24 hours. Replacement units prioritized in production schedule.
We respect your intellectual property and project privacy. NDA available upon request before any technical discussion. OEM and white-label services supported with full confidentiality.
Need certification documents for your project submission? We'll prepare a complete package.
Request Certificate PackageLow-E Glass — Questions We Get Asked Most
Answers to the most common technical and procurement questions from architects, contractors, and procurement managers working with Low-E insulated glass for the first time or switching suppliers.
Start Your Low-E Glass Project — Get a Quote in 24 Hours
Fill in your project details below. Our engineering team will review your requirements and respond with a technical recommendation, pricing, and lead time within one business day.
-
24-Hour ResponseEvery RFQ receives an engineer's reply within one business day — with technical recommendation, not just pricing.
-
Engineer-Led Type SelectionOur glass engineers analyze your climate zone, energy code, and design intent to recommend the right Low-E type — not just sell inventory.
-
NDA & ConfidentialityWe sign an NDA before any detailed technical exchange if required. Your project information is always kept confidential.
-
Free Sample ShipmentPhysical Low-E color samples shipped free of charge for qualified projects — typically arrives within 5–7 business days via express courier.
-
Complete Data PackageFull performance data sheet, test reports, and certification documents provided with every quotation — ready for your specification submission.
