Tempered Glass
Manufacturer for Projects
Engineered for superior strength and safety, our tempered glass delivers 3-5x the impact resistance of standard glass. When broken, it shatters into small, harmless granules—protecting people and property in high-traffic commercial and residential applications.
3-5X Stronger
Than standard annealed glass
Tempered Safety Glass
Engineered for Strength
Combine architectural aesthetics with rigorous safety standards. Our tempered glass is processed in state-of-the-art Tamglass furnaces to ensure flatness and optical clarity.
- 5x Stronger than annealed glass (≥95 Mpa surface stress)
- Certified Safety: CE (EN12150), SGCC (ANSI Z97.1)
- Precision fabrication: Holes, notches & polished edges
Key Applications
- Curtain Walls & Facades
- Glass Railings & Balustrades
- Shower Enclosures
- Windows, Doors & Partitions
Customization Options
- Thickness: 3mm - 19mm
- Size: Up to 3300 × 6000mm
- Edging: Flat Polish, Pencil, Bevel
- Drilling, Notching & Silk Screen
Quality & Standards
- 100% Surface Inspection
- Heat Soak Test (HST) Available
- Standards: CE EN12150 / SGCC
- Full QC Reports Provided
Heat Soak Test (HST)
Our advanced heat soak process strictly follows BS EN14179-1:2005 standards, significantly reducing the risk of spontaneous breakage caused by nickel sulfide (NiS) inclusions.
Tempered Glass Production
Glass undergoes standard tempering process at high temperatures
Heat Soak Chamber
Glass heated to 290°C±10°C and held for minimum 2 hours
NiS Phase Transformation
α-NiS converts to β-NiS with 2-4% volume expansion, triggering breakage if present
Risk Eliminated
Surviving glass has significantly reduced spontaneous breakage risk
Key Benefits of Heat Soak Testing
-
Computerized control system with Tamglass technology ensures guaranteed quality and precise temperature management
-
Reduces spontaneous breakage risk by eliminating glass with NiS inclusions before installation
-
Increases overall safety for occupants and reduces liability concerns for building owners
-
BS EN14179-1:2005 compliant meeting the strictest international heat soak standards
-
Most widely specified option for safety-critical glass applications worldwide
Recommended Applications
Ensure maximum safety for your project with our HST-certified tempered glass.
Safety & Quality Concerns We Address
We understand the critical challenges project managers face when sourcing tempered glass. Here's how we help you avoid costly mistakes and delays.
Spontaneous Glass Breakage
Tempered glass can shatter unexpectedly years after installation due to nickel sulfide inclusions, creating safety hazards and expensive replacement costs.
Dimension & Cutout Errors
Incorrect hole positions, edge notches, or dimensional inaccuracies make glass unusable. Tempered glass cannot be modified after processing.
Inconsistent Quality Batches
Variations in tempering stress, flatness, or optical clarity between batches cause visible differences and performance issues on the same project.
Delivery Delays
Late glass delivery halts entire construction schedules. When tempered glass arrives late, facade installation, fit-out, and handover are all impacted.
Transit Breakage
Poor packaging or handling during shipping leads to cracked or shattered glass on arrival, requiring insurance claims and replacement orders.
Communication Gaps
Slow response times, unclear technical specifications, and issues with drawing confirmation create misunderstandings that lead to production errors.
Let us show you how we eliminate these risks from your glass procurement process.
How We Solve Your Challenges
From engineering review to safe delivery, our comprehensive service ensures your tempered glass arrives on-spec, on-time, and ready for installation.
Engineering Review
Our technical team validates your drawings, checks dimensions, hole positions, and edge details before production begins.
Fast Sampling
Get sample pieces within 5-7 days for testing and approval, ensuring specifications meet your project requirements.
Traceable QC
Every piece carries a unique ID. We provide full inspection reports, stress tests, and photos documenting quality at each stage.
Safe Packaging
Export-grade wooden crates with interleaving paper and corner protection. Insurance coverage included for peace of mind.
Our Collaboration Process
Ready to start your tempered glass project with a reliable partner?
Tempered Glass for Every Project Type
Our tempered glass solutions adapt to diverse architectural and commercial applications. Select your project type to explore relevant specifications and performance benefits.
Curtain Wall Systems
- High wind load resistance for tall buildings
- Thermal stress resistance for exterior exposure
- Available in oversize panels up to 3.3m × 6m
Railing & Balustrades
- Impact-resistant for safety compliance
- Heat soak tested to prevent spontaneous breakage
- Custom hole patterns for hardware mounting
Shower Enclosures
- Polished edges for safe, elegant finish
- Easy-clean coatings available
- Precise cutouts for hinges and handles
Interior Partitions
- Clear, frosted, or tinted options
- Acoustic performance when laminated
- Modular sizing for office fit-outs
Not sure which specifications fit your project? Our engineers can help.
State-of-the-Art Tempering Facility
With 30,000㎡ of production space and advanced automated equipment, we deliver consistent quality at scale for demanding project timelines.
Including Oversize
Capacity
Per Batch
Worldwide
Equipment Capabilities
Automated CNC cutting, precision edge grinding, oversize convection tempering up to 3300×6000mm, and computerized heat soak furnaces ensure repeatable quality.
Engineering Team
500+ skilled workers including dedicated technical engineers who review drawings, optimize specifications, and provide responsive project support throughout production.
Want to see our facility firsthand? Schedule a virtual or on-site tour.
Tailored Specifications & Project References
Every project has unique requirements. Explore our customization options and see how we've delivered for similar projects worldwide.

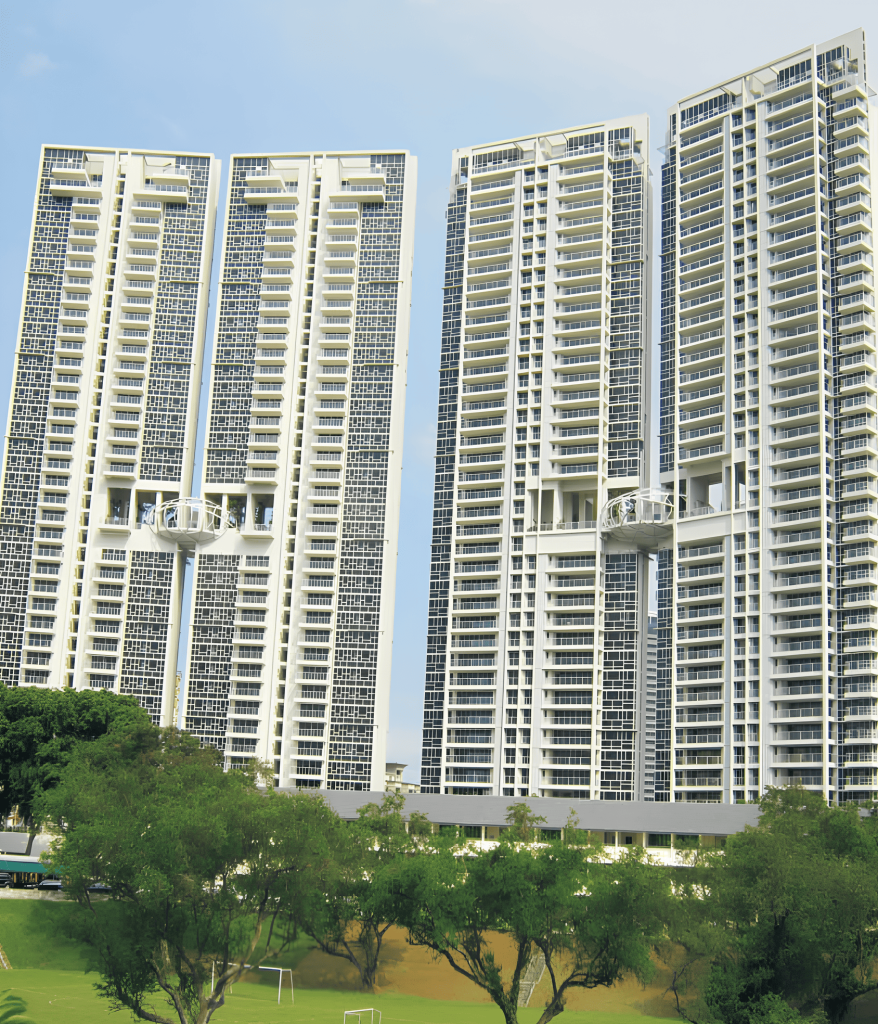

Singapore Sky Eleven (SKY 11)
Delivered 2,400㎡ of heat-soak tested tempered glass panels for this high-rise residential development. Project required precision cutouts for spider fitting systems and strict adherence to Singapore building codes.
Have specific requirements? Let's discuss your custom tempered glass needs.
OEM & ODM Cooperation Programs
Whether you need manufacturing to your exact specifications or collaborative product development, we offer flexible partnership models tailored to your business needs.
OEM Services
Manufacturing to Your Specifications
- Produce glass exactly to your drawings and specifications
- Private labeling and custom packaging options
- Consistent quality across repeat orders
- Dedicated production scheduling for your projects
- Full traceability and documentation per your requirements
ODM Services
Collaborative Product Development
- Joint development from concept to finished product
- Engineering support for design optimization
- Prototyping and testing before mass production
- Access to our R&D capabilities and material expertise
- Flexible IP arrangements to protect your innovations
Typical Cooperation Process
Discussion
Review
Approval
Production
Inspection
Support
Looking for a reliable manufacturing partner? Let's explore cooperation opportunities.
Our Tempered Glass Manufacturing Process
Every piece of tempered glass passes through our rigorous 8-step production process, with quality checkpoints at each stage ensuring consistent results.
CNC Cutting
Automated cutting machines slice raw glass sheets to precise dimensions using your approved drawings. Tolerances are maintained within ±1mm for standard cuts.
Edge Grinding & Polishing
Four-edge automatic grinding machines process edges to your specified profile—flat polish, pencil, bevel, or seamed—ensuring safe handling and aesthetic finish.
Drilling & Cutouts
CNC drilling creates precise holes for hardware mounting. Notches and cutouts are machined according to your drawings before tempering locks in the final shape.
Washing & Inspection
Multi-stage washing removes all contaminants before heating. Visual inspection identifies any surface defects, chips, or scratches that could affect final quality.
Tempering
Glass enters our Tamglass convection furnace at 650-700°C, then rapid air quenching creates the compression surface layer that provides 3-5x strength improvement.
Heat Soak Test (Optional)
For safety-critical applications, glass undergoes BS EN14179-1:2005 compliant heat soaking at 290°C to eliminate potential NiS inclusions before installation.
Final QC Inspection
Each piece is checked against order specifications, fragmentation tested on samples, and surface stress verified using polarized light inspection equipment.
Packaging & Shipping
Export-grade wooden crates with interleaving paper and corner protection secure your glass for safe transit. Full documentation accompanies each shipment.
Questions about our production process? Our technical team is ready to explain.
Defect Prevention & Quality Control
Understanding common tempered glass issues and how our rigorous QC protocols prevent them from reaching your project site.
Common Faults
Wavy surface patterns visible in reflected light, caused by glass sagging between furnace rollers during heating. More noticeable on thin glass and large panels.
Handling damage, roller contamination, or debris in the furnace leaves permanent marks that cannot be removed after tempering.
Improper cutting or grinding creates stress concentrators that can lead to breakage during tempering or after installation.
Rainbow-like patterns from uneven cooling, particularly visible at certain angles. More common with aggressive quenching or equipment issues.
Nickel sulfide inclusions can cause delayed breakage months or years after installation, especially in tension zone locations.
Our Prevention Measures
Tamglass convection technology with oscillating heating provides superior temperature uniformity, minimizing roller wave and optical distortion.
Automated washing lines with filtered water, followed by visual inspection under controlled lighting to catch surface defects before heating.
CNC grinding with proper feed rates and coolant flow, plus 100% edge inspection under magnification before tempering.
Thickness-specific quench recipes with balanced air pressure distribution, regularly calibrated and validated with stress measurements.
BS EN14179-1:2005 compliant heat soak process at 290°C eliminates glass with NiS inclusions before shipment for safety-critical applications.
Need a customized quality assurance plan for your project?
International Standards & Certifications
Our tempered glass products meet rigorous international quality and safety standards, backed by third-party certifications recognized worldwide.
Documents We Can Provide
-
Test reports from accredited laboratories
-
Certification copies for building permits
-
Material safety data sheets (MSDS)
-
Declaration of performance (DoP)
-
Heat soak test certificates (when applicable)
All certifications are available upon request. We can also arrange third-party inspection if required by your project specifications.
Need specific certifications for your market or project? Let us know.
Lead Time & Delivery Schedule
Transparent timelines help you plan your project. Here's what to expect from drawing confirmation to delivery at your site.
Need a detailed production schedule for your project timeline?
Frequently Asked Questions
Find answers to common questions about our tempered glass products, ordering process, and technical specifications.
Our oversize tempering furnace can process glass up to 3300mm × 6000mm (approximately 10.8ft × 19.7ft). For thickness, we can temper glass from 3mm to 19mm. Larger sizes or curved glass may have specific requirements—contact our engineering team for detailed feasibility assessment.
No, tempered glass cannot be cut, drilled, or edge-modified after the tempering process. Any attempt to do so will cause the glass to shatter completely. All cutting, drilling, notching, and edge processing must be completed before tempering. This is why accurate drawings are essential before production begins.
Tempered glass has higher surface compression (≥95 MPa) and breaks into small, relatively harmless fragments. Heat-strengthened glass has lower compression (24-69 MPa) and breaks into larger pieces similar to annealed glass. Tempered is required for safety glazing; heat-strengthened is often used in laminated assemblies where the glass needs to stay in place if broken.
Heat soak testing is recommended for safety-critical applications where spontaneous breakage could cause injury or significant property damage. This includes high-rise curtain walls, overhead glazing, glass balustrades, public buildings, and any application where replacement would be extremely difficult or expensive. The HST process significantly reduces the risk of NiS-related spontaneous breakage.
For accurate pricing, please provide: glass dimensions (length × width × thickness), quantity, edge processing type (flat polish, pencil, bevel), any holes or cutouts with positions, glass type (clear, low-iron, tinted), whether HST is required, and your delivery location. CAD drawings with detailed specifications ensure the most accurate quote.
Yes, we strongly encourage sample production for new specifications or large projects. Sample lead time is typically 5-7 days. Sample costs depend on complexity and may be refundable against bulk orders. Samples allow you to verify dimensions, edge quality, optical properties, and compatibility with your hardware before committing to full production.
We use export-grade wooden crates with steel banding. Glass is packed vertically with interleaving paper between each piece and foam corner protection. Crates are designed for forklift handling and include proper labeling with handling instructions. For large or heavy panels, we use A-frame steel racks. All shipments include full cargo insurance coverage.
Transit damage is covered by cargo insurance—document any damage upon receipt with photos. For manufacturing defects discovered during installation, we offer replacement at no charge. Our tempered glass carries a quality warranty against defects in materials and workmanship. HST glass has additional coverage for spontaneous breakage. Detailed warranty terms are provided with each order confirmation.
Have a question not listed here? Our technical team is ready to help.
Request a Quote for Your Project
Share your project requirements and receive a detailed quotation within 24 hours. Our engineering team is ready to support your tempered glass needs.
Why Request a Quote from PrimePro?
-
24-Hour Response
Receive detailed quotations within one business day
-
Engineering Review
Free DFM check to optimize your specifications
-
Quality Guarantee
CE, SGCC, AS/NZS certified production
Tell Us About Your Project
Fill in the form below and we'll get back to you with a detailed quote.
Prefer to talk directly? Reach us at info@primeproglass.com or +86 137 1009 7049
